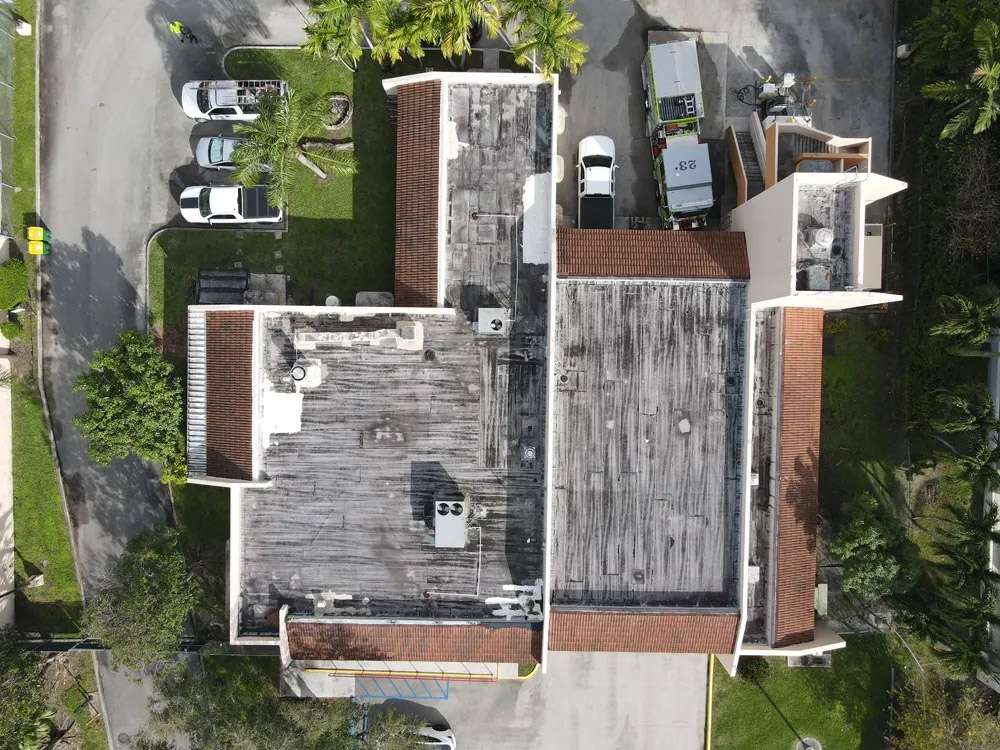

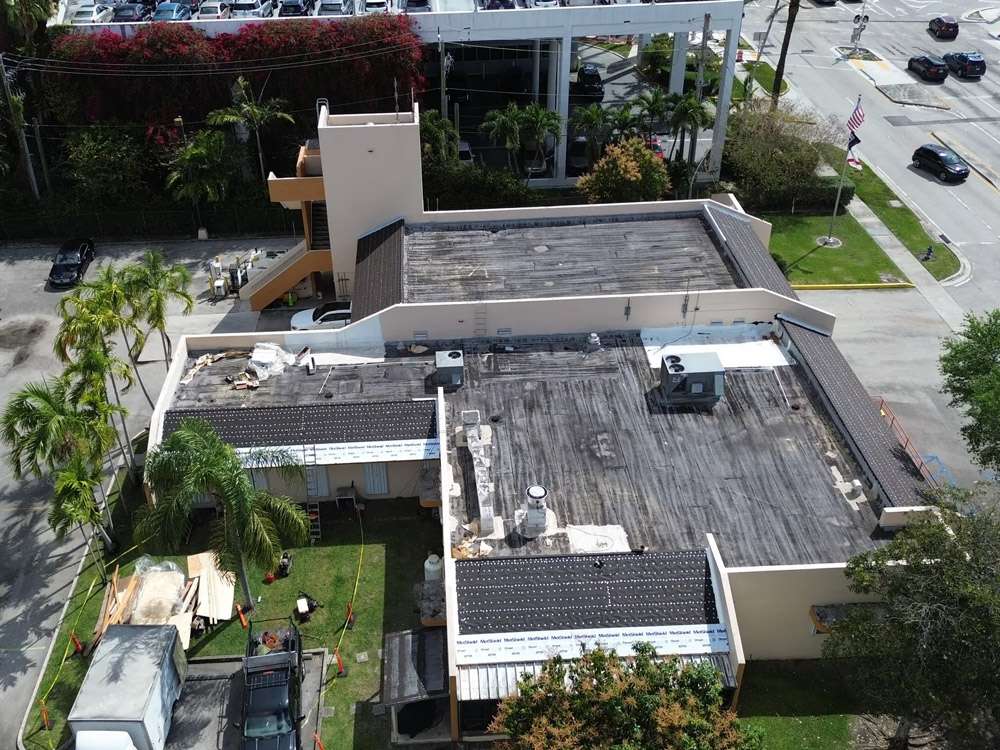

Miami-Dade Fire Rescue 23

Waterproofing on Eyebrows

Apply Gaf Cleaning Concentrate followed by GAF Bonding Primer. On all wall flashing and penetrations provide Flexseal Roofing Selant With GAF Premium Fabric followed by 1 coat of white GAF Surface Seal SB Roof Coating followed by a second layer of GRAY GAF Surface Seal SB Roof Coating Top Out With Last Layer of White GAF Surface Seal SB Roof Coating.

Window Replacement: Eco Windows system window wall 400, Eco Window System Series 800 Commercial, Eco Window System Casement Window 500, Eco Window System Casement Fixed 550.

Garage door replacement: FL# 10706.1 Overhead door by Best Rolling Doors.

Low Slope Roofing System (Concrete Deck): Tear off current roofing system to concrete deck followed by installing Soprema Tapered insulation ¼ Slope attached with Soprema DUOTACK followed by a 1/8 Soprema Sopraboard 1/8 also attached with Soprema DUOTACK followed by Soprema Sopralene Flam 180 Base Ply top out with Soprema Sopralene FLAM 180 FR GR ( High Reflective Whit Granules).

Steep Slope System: Full tear off to Wood 5/8 Plywood Re nail Decking as per F.B.C followed by a Tamko #30 ASTM D226 together with GAF Versashield Fire Resistant Roof Deck Protection to meet Current Class A rating assembly followed by a Drexel
MetShield HT to meet the highest standard of Water tightness Warranty

Warranty: 20 Year NDL

Obstacles: This is a 24hour operating Emergency facility with a lot of in and out traffic as 911 calls come in and they dispatch. We also had to change windows and garage doors while current operation of this building exist.
