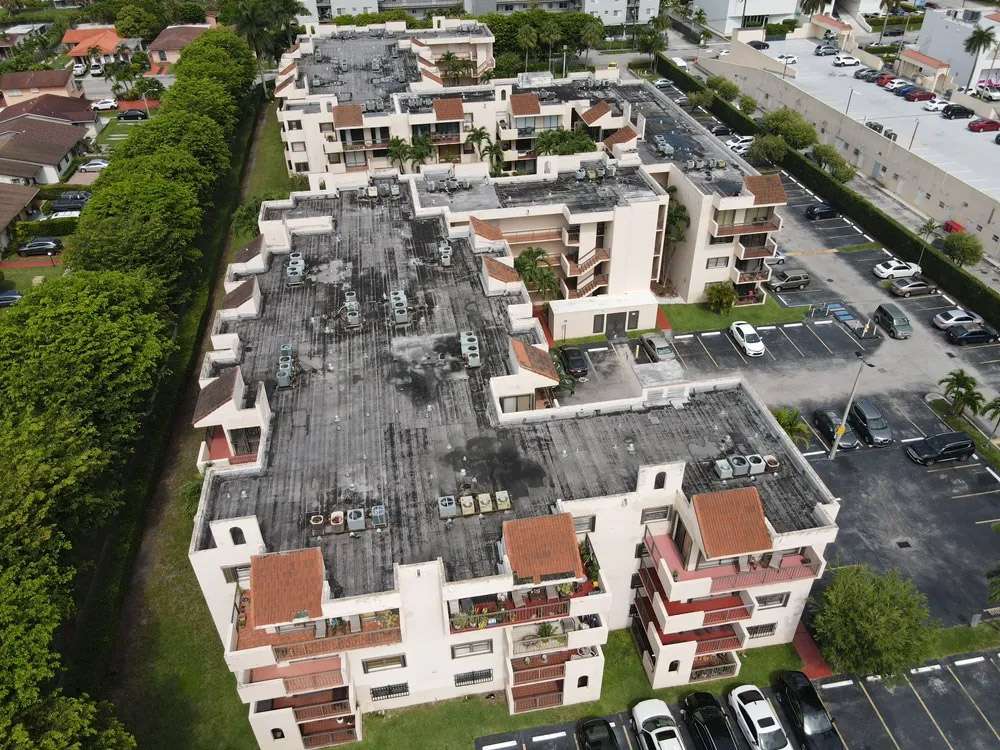

Westchester Point
Year: 2023
Value: 805,000
Duration: 90 days
Manufacture: Elevate (Low Slope)
Project Details
SYSTEM
Roof system Concrete Deck (Low Slope): 33,000.00 Sq Ft
Geo Madruga, Ceo
A-1 Roofing Contractor Group
Post-Solution
As Platinum Commerical Contractors we are able to provide 20 yrs. NDL Warranty
Low Slope Roofing System (Concrete Deck)
Tear off current roofing system to concrete deck followed by New Single Ply TPO Roofing system consisting of the following components: Base Insulation: Firestone ISO HD .5″ 4’x8′ HD
Grade II Built Up Plies: Top Ply: Firestone UltraPly TPO 60 White 10’x100′, Flashing Top Ply: Firestone UltraPly TPO 60 White 10’x100′ Metal Flashings: Drip Edge 4×4 TPO Clad 24 ga GLUM, Cntr Flshng 4″ Face SM GLV 24ga G90.
System Summary: Firestone UltraPly TPO Single Ply adhered to adhered to Iso HD adhered to existing LWC over concrete dec.
Steep Slope: The underlayment for your new Tile system is: Tamko ASTM D226 Type 2 #30 & Boral Tile Seal. Your new Tile roof cover is: Villa900. You can upgrade your underlayment and increase your leak free life cyle and warranty with an Boral.
Citadel Plus interply – See next page options. Your new metal flashings are as follows: Drip Edge 3 x 3 GLV 26ga Pre-Painted, L Metal 5 x 7 GLV 24ga G90, Cntr Flshng 4″ Face SM GLV 24ga G90.
Warranty: 20 Year NDL
Obstacles: This was an 55+ years old community making it very difficult with noise and dust protection followed that this project also got A/C replacement by us as well. at the same time the roofing was occurring .
